Rubber Roller

rubber roller


Standard Feature

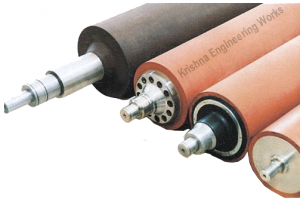

Rubber Roller

We are specialized and manufacturer, exporter of all types of high quality Rubber Roller. Rubber Rollers available for all kind of applications and various types of rubber coated rollers. Also, dealing on high quality fabrication, re-covering rubber roll, precision roller, textile rubber roller, printing rubber roller manufacturer and industrial rubber roller from last 25 years.

  • Heavy duty side M.S. steel walls to ensure vibration free running at high speed.
  • Foundation free base frame.
  • High velocity air blower for fast dying.
  • Good quality electronic input drives, motors, Tension Control System etc.
  • All free rollers are dynamically balanced.
  • Pneumatic functions for impression rolls.
  • Auto tension control.
  • Auto web aligner.
  • Careful quality control in manufacturing process to ensure years of maintenance free running.

Technical Specification

1) Rubber Roller / Ebonite Rolls

  • Remove wrinkles
  • Achieve full width of the web Eliminate baggy center
  • Control slack edges
  • Separate slitted webs on winder
  • Try to even out lateral tension across the web width

2) Bow Roller / Expand roller

  • The performance of rubber expander (Bow Rollers) depends upon Lead in – lead out distance, Wrap angle, Position of bow (adjustable). 3: 1 lead in – lead out ratio is considered to be best. However, lead out distance preferably should not to be more than 3 times of expander roller diameter. The best results are achieved when Bow Roll is perpendicular to the web direction.
  • Sizes: Diameter up to 300 mm
  • Length: up to 500 mm

3) Grooved Rollers

  • Ruber Grooved Separator Rollers

4) Brush Roller
5) Web Carrying Roller
6) Analox Roller For Flexo Printing
7) Wrinkle Remiving Rollers

  • Slat Expander Rollers are available in wooden slat with felt covering and With aluminum slats. Also, available in 6″ diameter 8″diameter & 12″ diameter in any working width.
  • Particularly suitable for slow speed machines like coating cloth coating machines. Flat Bed Printing machine, artificial leather cloth before Batching machine etc.
  • The Roller is fitted with cam mechanism fitted with on bearings with left & Right slats from center. For longer width three slats are fitted and middle slats are fixed to avoid V shaped wrinkle-removing action.
  • Available with foot mounting pedestals.
