Automatic Guiding System

Automatic Guiding System, Web Guiding System


Standard Feature

Automatic Guiding System, Web Guiding System

Automatic Guiding System, Web Guiding System is used for any winding & unwinding application for guiding the web to reduce the wastages of the material & to get high production output with minimum man power. Web Guiding System Manufacturer with high quality equipment, We also manufacturing of Web Guiding System to guide web materials.

The signals from the Air flow sensors are received by spool type proportional servo valve mounted just under polyester diaphragm. Unique design gives extremely narrow dead band & fastest possible response for unexcelled guiding results. The power pack units are available in different models from 0.25 HP to 3 HP to meet any guiding application you may have. In-Built Air Generator avoids use of external air supply.

  • 0.5 H.P. Motor
  • Air Pipe – 5 Mtr.
  • Oil Pipe – 5 Mtr.
  • Sensor – 1 pcs
  • Adjuster – 1 pcs.
  • Air Filter – 1 pcs.
  • Oil Filter – 1 pcs.
  • Hydraulic Cylinder size 4”, 6” & 8”strock – 1 pcs.
  • Technical Specification

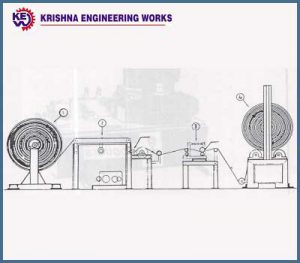

    • Let off unit.
    • Inspection table with pressure roll device.
    • Web centering device.
    • Two roll surface polling machine with pneumatic pressing device.
