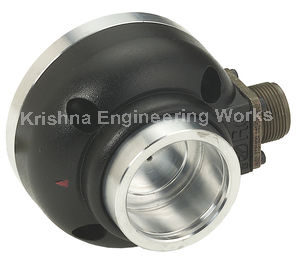

Load Cell

Load Cell


Standard Feature

Load Cell

Types Of LOAD CELLS:

1) Edge Guiding

The most popular type of web position control includes to achieve a desired edge alignment of film at various stages of process. Such a system is especially useful for flexo printing, gravure printing, extruders blown film plant, extrusion laminate, slitting machine etc.

2) Chaser Guiding

One another type of web position control includes chasing one or two webs to a reference web to achieve a desired edge alignment of multiple layers. This is done by either mechanically or electronically slaving two or more sensors. Such a setup is useful for lamination process.

3) Center Guiding

Center guiding application may involve either fixed or moving sensor system. The web guide system keeps the center line of the web in an exact position. In case of Moving sensor center guiding the sensors continuously reposition themselves automatically to detect both web edges and maintain the center line of the web in an exact position irrespective of any width variation.

4) Line Guiding

This system uses a printed line or continuous patch or any pattern on the web. The system maintains the chosen mark (printed line or pattern) in exact lateral position irrespective of the web edge position. This system is widely used in slitting machine.

Technical Specification

  • Air Turner Bar Systems are designed and manufactured to suit customers’ particular application. There are six sizes for 90° entry or 180° turnover, with web widths ranging from 100mm to 3 meters, for horizontal or vertical mounting.
  • The units are built as freestanding or bolt-on modules, complete with leveling braces and bolting down holes. They are designed to suit existing machine and site conditions.
  • The framework is rectangular hollow section with specialized corner bracing incorporating the fine adjustment mechanism and mounting for the Turner Bars.
  • Bars are tubular steel with bell mouth air holes, ground, polished and hard chrome plated. Air blow creates an air film assist to the bar.
  • By choosing appropriate mounting positions, a variety of configurations can be obtained to enable a choice of entry and exit requirements.
  • Path rollers are normally aluminum, statically or dynamically balanced.
  • Air for flotation requires 5 CFM per 100mm web width at 10ins to 18ins W.G. depending on web tensions.
  • Fans direct mounted on each Turner Bar can be supplied at the time of manufacture (option). For narrow web widths and special applications, air flotation holes can be reduced by using compressed air or arranged as required.
